Halbach Array & One-Sided Magnetic Focusing Effect

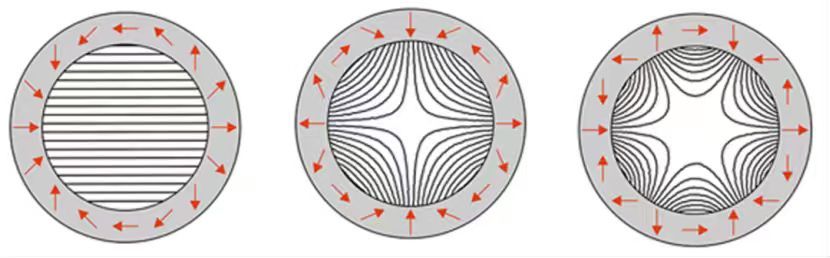

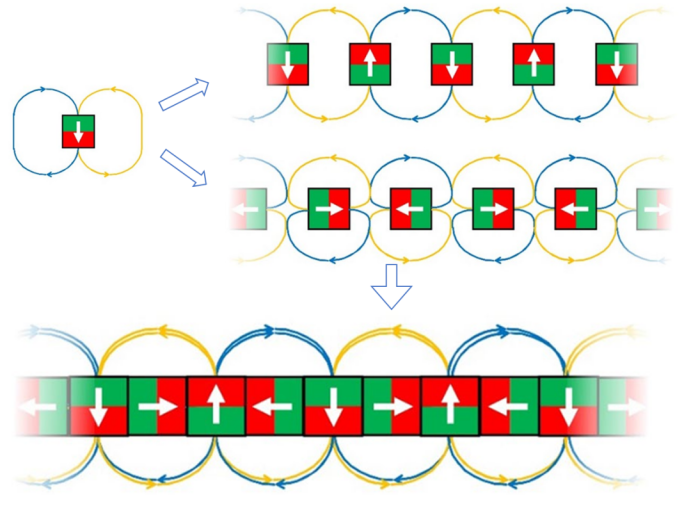

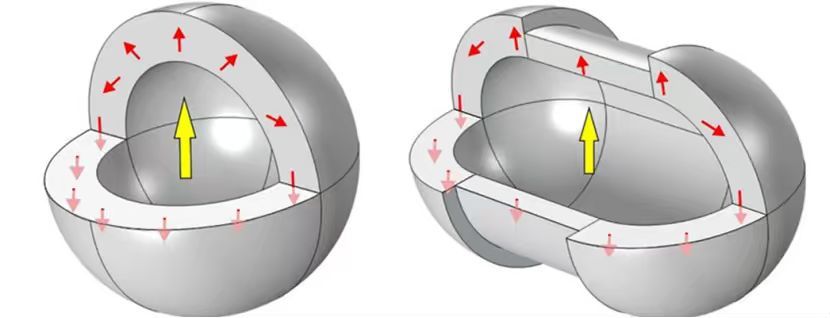

A Halbach Array is an ingenious magnet arrangement structure. By arranging magnets with different magnetization directions in a specific pattern, it effectively “concentrates” the magnetic field to one side, generating the strongest possible one-sided magnetic field with the least amount of magnet material.

Core Function: One-Sided Magnetic Focusing

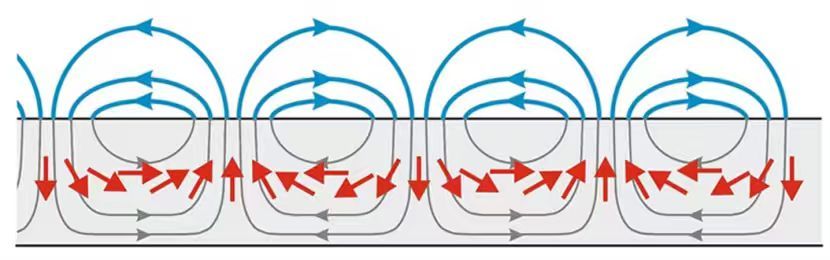

This arrangement produces a unique phenomenon: magnetic flux lines are highly concentrated on one side of the array, significantly boosting magnetic field strength on that side. On the opposite side, the magnetic field is largely canceled out, resulting in an extremely weak field.

This “one-sided focusing” offers several key advantages:

1. Stronger Magnetic Field: For the same magnet volume, the field strength on the focused side can reach approximately 1.4 times that of a conventional single magnet.

2. Lighter & More Compact: Since the magnetic field is efficiently concentrated, the magnetic circuit structure on the weak-field side (such as the rotor yoke in motors) can be greatly simplified or even eliminated, enabling equipment lightweighting.

3. Cleaner Waveform: The generated magnetic field waveform closely approximates an ideal sine wave, reducing energy loss and mechanical vibration in devices.

Major Application Fields

Application Area	Typical Scenarios	Key Functions
Medical Diagnostics	Magnetic Resonance Imaging (MRI)	Produces strong, uniform magnetic fields in a smaller space for clearer imaging, while lowering equipment weight and cost.
Rail Transportation	Maglev trains	Delivers strong levitation and propulsion force via a one-sided field, while shielding the passenger compartment from magnetic interference.
High-Performance Motors	Robot joints, drones, electric vehicles	Greatly improves power and torque density, delivering higher output in the same size with lower energy consumption.
Consumer Electronics	Single-sided fridge magnets, high-end headphones & speakers	Enables one-sided adhesion or concentrates magnetic fields in audio devices to boost magnetic circuit efficiency and reduce size.
Scientific Equipment	Particle accelerators, free-electron lasers	Generates high-intensity, specially distributed magnetic fields for guiding particle beams.

JMAG Software Simulation of Halbach Array

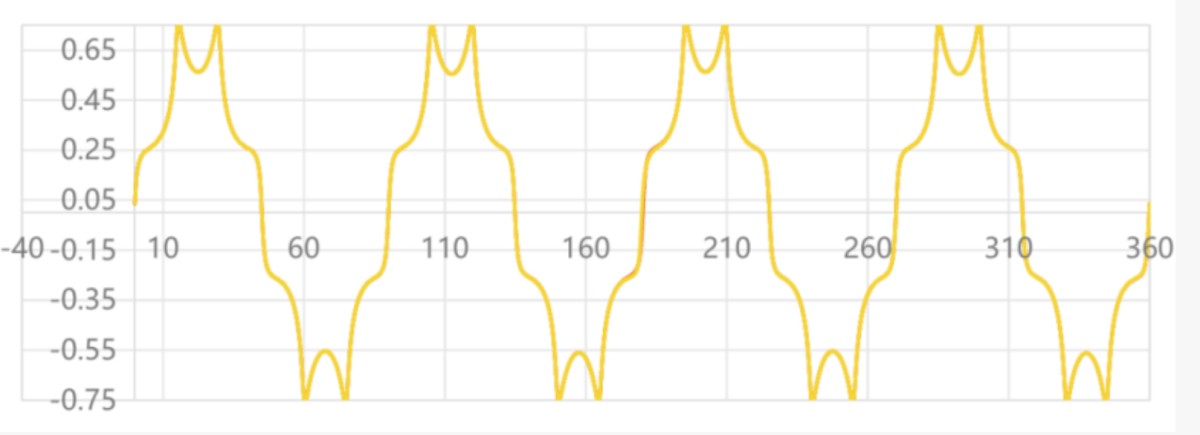

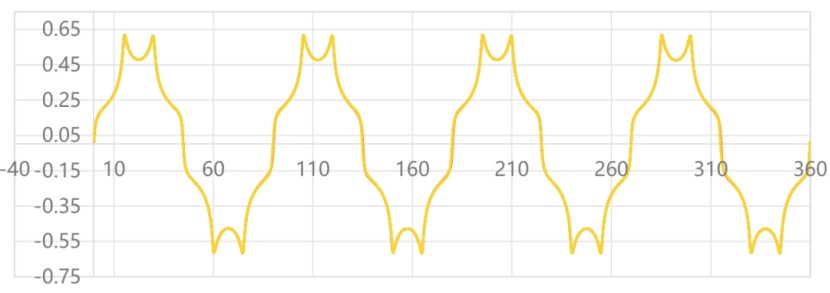

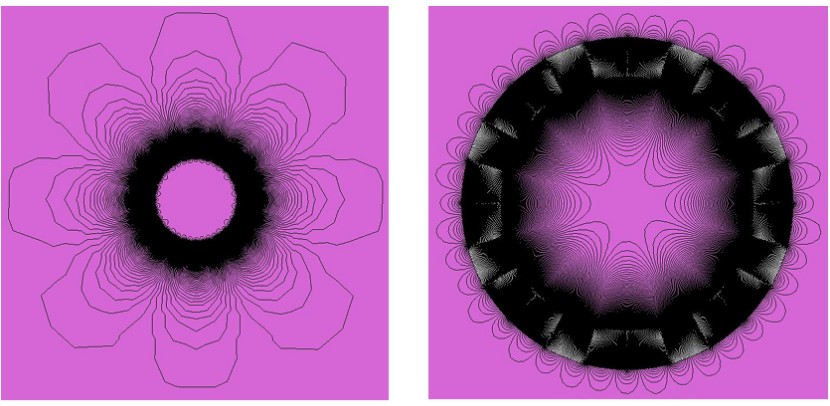

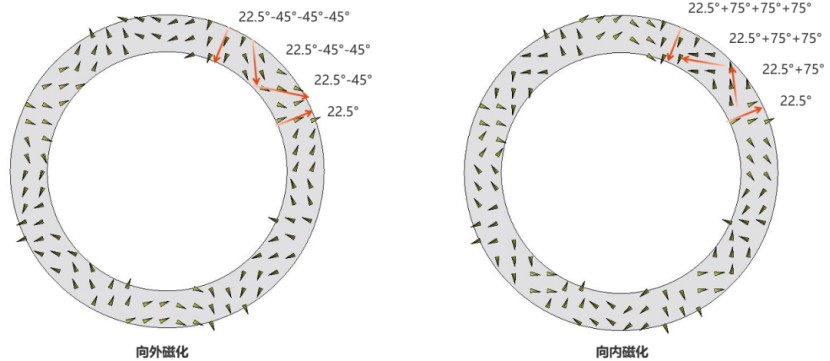

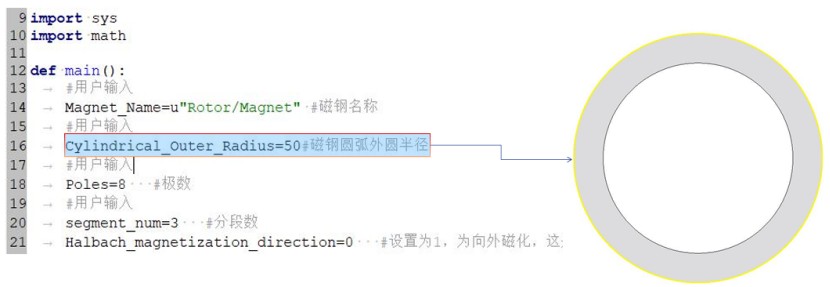

This simulation uses the latest JMAG v25.0 to analyze an 8-pole, 3-segment Halbach Array. Parameters including magnet inner/outer diameters, pole count, segment number, and magnetization direction are configured before solving. Results include magnetic flux line distribution and magnetic flux density comparison charts.

If you would like to learn more about JMAG software or conduct Halbach Array simulations using JMAG, feel free to contact us for online discussion and technical support.
