The selection of a permanent magnetic iron removal filter needs to be comprehensively considered in terms of material characteristics, working conditions, and equipment parameters. The following is a systematic selection guide:

1. Main selection parameters

‌Magnetic field strength‌

Determined according to the particle size and content of iron impurities: micron-sized particles need to be ≥12,000 Gs (such as 1μm particles); strong magnetic models can reach more than 15,000 Gs;

NdFeB is preferred as the permanent magnet material to ensure magnetic stability at high temperatures.

‌

Processing capacity‌

Match the production line flow: For example, the chemical production line needs to be selected by tons/hour (t/h) or cubic meters/hour (m³/h);

The size of the magnetic rod is adapted to the pipeline space (diameter Φ25~50mm, length 100~1000mm).

‌Environmental resistance‌

Temperature range: mark the upper limit of the working temperature (such as 300℃ working conditions, select special models);

Anti-corrosion requirements: Teflon coating for acidic media (resistant to pH 1-14).

2. Key points for working condition adaptation

‌Material property analysis‌

Features of iron impurities: When the content is greater than 1%, select the unloading type (such as RCYD type), and when it is less than 0.5%, use the manual unloading type.

Fluid properties: High-viscosity liquids need to reduce the flow rate design to prevent magnetic adsorption failure.

‌Installation scenario optimization‌

Key interception points: conveyor belt outlet, packaging machine front section, or heat exchanger inlet.

Space restrictions: Modular magnetic groups are used in compact scenarios (such as the outlet of the saccharification tank in a food factory).

‌Intelligent operation and maintenance configuration‌

When the iron content fluctuates greatly, the metal detector is linked to achieve automatic start and stop.

High-risk environments (such as dusty areas) are equipped with an IP65 protection level.

3. Industry customized solutions

‌Power/Chemical System‌

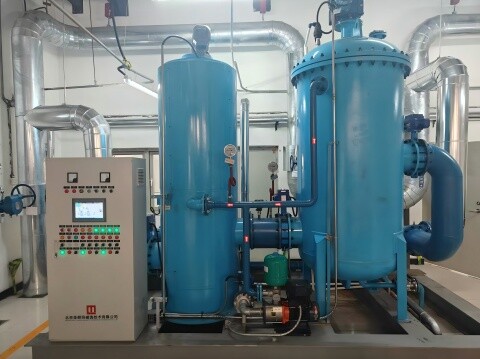

For condensate treatment, select a model with a 95% iron removal rate and a dual-effect anti-corrosion system with magnetic adsorption area + magnetization area.

For corrosive fluids (such as hydrochloric acid), use a 316L stainless steel shell.

‌

Food/Pharmaceutical Field‌

Sanitary design: surface polishing Ra≤0.8μm, in compliance with HACCP certification;

The online cleaning (CIP) function is essential.

‌

Resource recovery scenario‌

For slag treatment, select a high-temperature model (300℃), with a metal recovery rate of more than 95%.

‌Selection process‌: clarify iron removal requirements → quantify material parameters (particle size/viscosity/iron content) → calculate processing volume → check environmental restrictions → select magnetic configuration → verify installation feasibility.

Note: High-value production lines recommend an integrated solution of "magnetic force + self-unloading + intelligent monitoring", which can reduce operating costs by 90%.
